The configuration of a gauge is performed in its editor. The gauge editor in reports can be:

Advanced allows for element-by-element configuration of the component. It requires a deep understanding of gauges. This type of editor is available only in Stimulsoft BI Designer for WinForms.

Simple provides a quick and easy way to add a component to a report and use it for data display and analysis.



Switching between editor modes is done in the Options menu of the report designer using the Gauge Editor option. By default, the simple editor is used. Below is a description of the simple editor for the Gauge component.

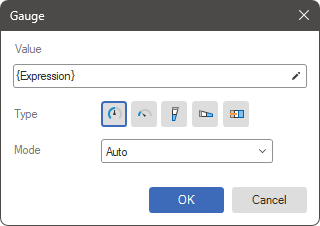

The Value field allows you to specify a value for the gauge or an expression whose calculation result will serve as the value for this component.

The Type parameter allows you to change the type of the gauge.

The Mode parameter allows you to change the calculation mode for the gauge's value range.
