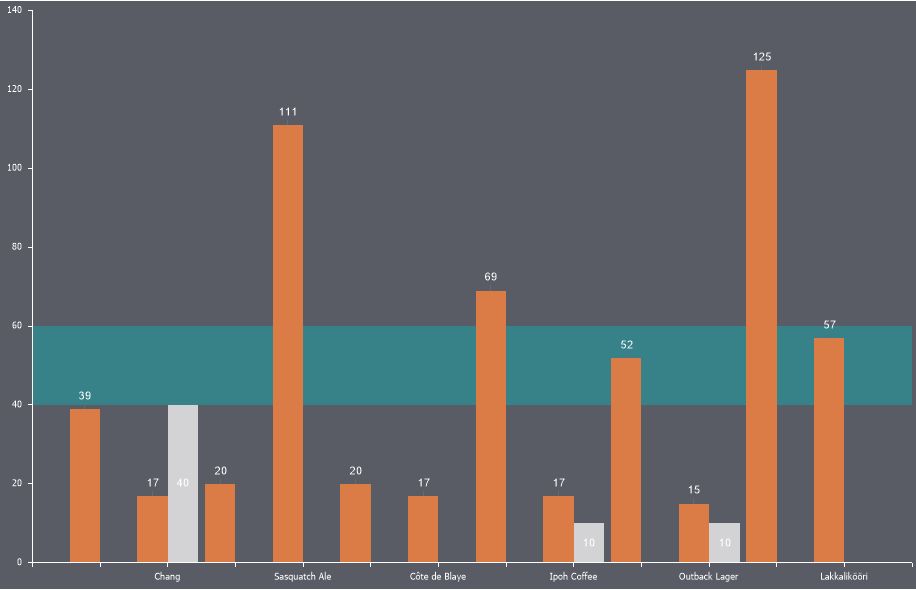

Strips are horizontal or vertical ranges of values highlighted with a specific color.






To add a strip:

In the component editor, go to the Chart tab and select the Strips sub-tab;
Click the Add Strip button;
Configure the strip using the available properties.



Information



The number of strips on a chart is unlimited.







Below is a table of properties for configuring strips:



Name

Description

Allow Apply Style

Enables applying design settings for the strip from the chart style. If set to True, the strip design will inherit the selected chart style. If set to False, additional properties will appear for customizing the strip's appearance, such as the brush, strip color, smoothing, and title font type, size, family, and color.

Max Value

Allows defining the maximum value of the strip, i.e., the value up to which the area will be filled with the strip's color.

Min Value

Allows defining the minimum value of the strip, i.e., the value from which the area will be filled with the strip's color.

Orientation

Allows selecting the strip's orientation: Horizontal, Vertical, or Horizontal Right.

Show Behind

Determines whether the strip is displayed behind or in front of the chart's graphic elements. If set to True, the strip will appear behind the elements. If set to False, it will appear on top of the graphic elements.

Text

Allows defining the title text for the strip.

Title Visible

Toggles the visibility of the strip's title text. If set to True, the title text will be displayed. If set to False, the title text will not appear.

Visible

Toggles the visibility of the strip. If set to True, the strip will be displayed on the chart. If set to False, it will not appear.
