Report with Segmented Pages

If data in a report should be placed on a single page by width or height, and a page size is small, you can add the required number of segments by width and/or height. In this case, one segment is a whole page and summary page consists of several segments across by width or height. To design a report with segmented pages, follow the steps below:



1.Run the designer;

2. Connect the data:

     2.1. Create a New Connection;

     2.2. Create a New Data Source;



3. Define the number of segments by height and/or width. For example, set the Segment per Height property to 2, i.e. the number of segments by height is 2.

4. Put the DataBand on a segment of the report template.





5. Edit DataBand:

5.1. Align the DataBand by height;

5.2. Change values of band properties. For example, set the Can Break property to true, if you wish the data band to be broken;

5.3. Change the DataBand background;

5.4. Enable Borders for the DataBand, if required;

5.5. Change the border color.

6. Specify the data source in the DataBand using the Data Source property:





7. Put text components with expressions on DataBands. Where expression is a reference to the data field. For example, put two text components with the following expressions: {Products.ProductName} and {Products.UnitslnStock};

8. Edit Text  and TextBox component:

8.1. Drag and drop the text component in DataBands;

8.2. Change parameters of the text font: size, type, color;

8.3. Align the text component by width and height;

8.4. Change the background of the text component;

8.5. Align text in the text component;

8.6. Change the value of properties of the text component. For example, set the Word Wrap property to true, if you need a text to be wrapped;

8.7. Enable Borders for the text component, if required.

8.8. Change the border color.

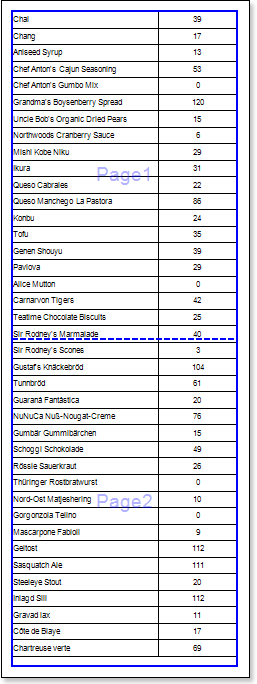

9. Click the Preview button or invoke the Viewer, pressing F5 or clicking the Preview menu item. After rendering all references to data fields will be changed on data form specified fields. Data will be output in consecutive order from the database that was defined for this report. The amount of copies of the DataBand in the rendered report will be the same as the amount of data rows in the database.





10. Add other bands to the report template, for example, the HeaderBand;

11. Edit this bands:

11.1. Align it by height;

11.2. Change values of properties, if required;

11.3. Change the background of bands;

11.4. Enable Borders, if required;

11.5. Set the border color.

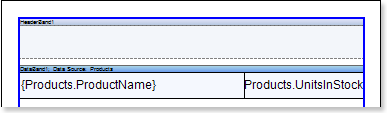

12. Put text components with expressions in the band. The expression in the text component is a header in the HeaderBand.

13.  Edit text and text component:

13.1. Drag and drop the text component in the band;

13.2. Change font options: size, type, color;

13.3. Align text component by height and width;

13.4. Change the background of the text component;

13.5. Align text in the text component;

13.6. Change values of text component properties, if required;

13.7. Enable Borders of the text component, if required;

13.8. Set the border color.

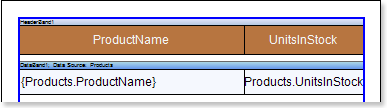

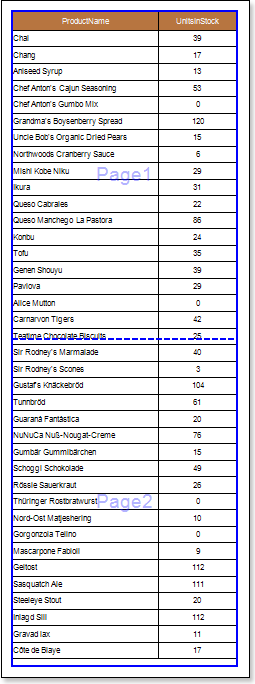

14. Click the Preview button or invoke the Viewer, clicking the Preview menu item.







Adding Styles



1.Go back to the report template;
2.Select DataBand;

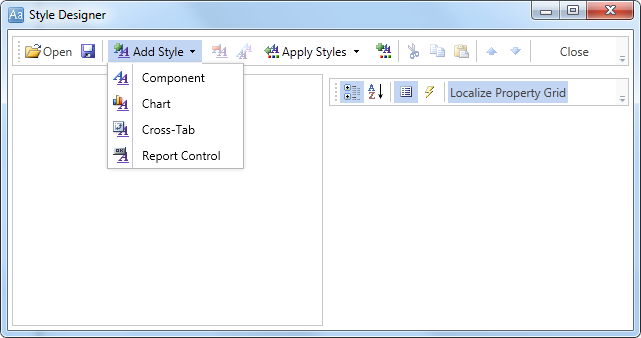

3.Change values of Even style and Odd style properties. If values of these properties are not set, then select the Edit Styles in the list of values of these properties and, using Style Designer, create a new style. The picture below shows the Style Designer:

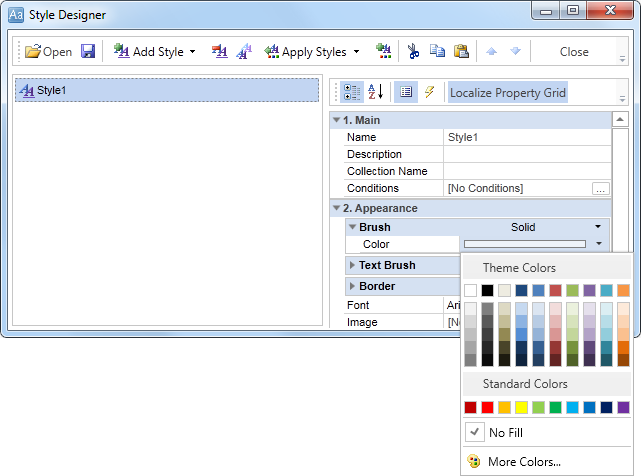

Click the Add Style button to start creating a style. Select Component from the drop down list. Set the Brush.Color property to change the background color of a row. The picture below shows a sample of the Style Designer with the list of values of the Brush.Color property:





Click Close. Then a new value in the list of Even style and Odd style properties (a style of a list of odd and even rows) will appear.

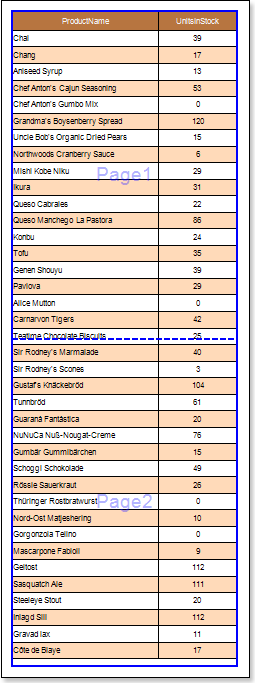

4. To render the report, click the Preview button or invoke the Viewer, clicking the Preview menu item.
